I need a good valve at the bottom of my plastic barrel that I can screw a garden hose to. Not sure what to get, and once I do, not sure how to get my arm through the small opening and reach to the bottom to deal with it.

Joined
Oct 8, 2017
Messages
6,849
Reaction score
5,029
Location
Birmingham, AL USA
Hardiness Zone
8a
Country
United States
Use the whole pvc glue universe. A ball valve will snag less. Put a filter after that valve, and make sure the container allows you to add stuff in a metered way so that way we can call you Captain ControlaBelly!

Joined
Oct 19, 2017
Messages
87
Reaction score
88
Location
Philly
Hardiness Zone
7A
Country
United States
Need more info, for a 55 gallon plastic barrel you can drill a hole slightly smaller and screw a hose bib directly to the barrel, no leaks if done correctly.



Home depot...
If using a standard hose bib from HD the water will come out slowly




Amazon...

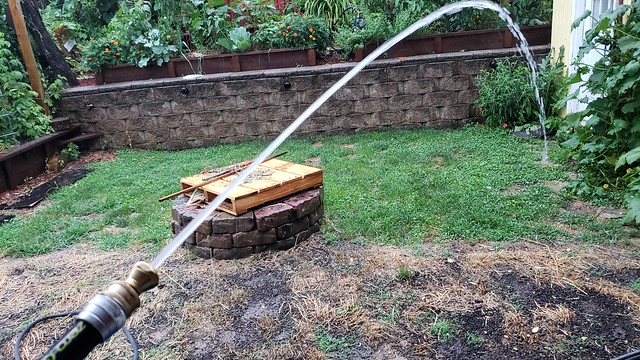

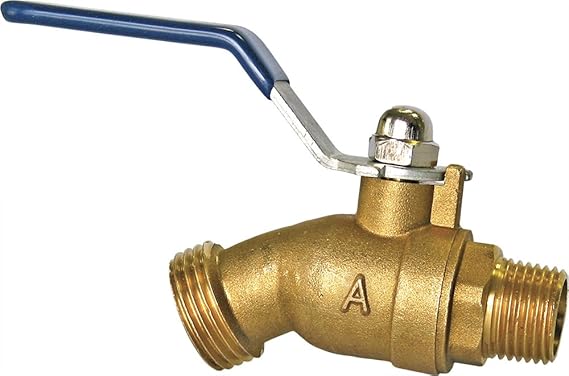

To dispense the water quickly I would get a 1/4 turn ball valve hose bib

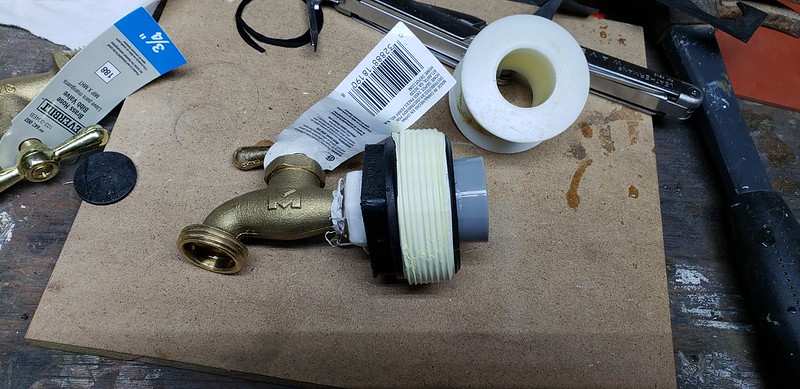

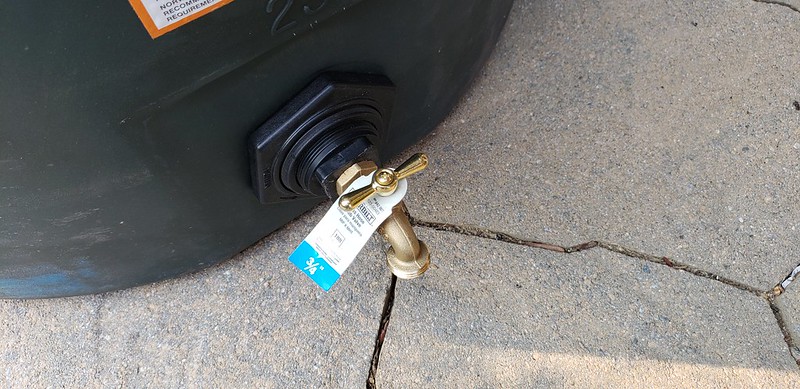

I used a bulkhead fitting on my new barrel but my 55 g barrels all were threaded directly to the barrel. The bottom bulkhead fitting had a cap that was removed. This hose bib is hooked into a transfer pump.

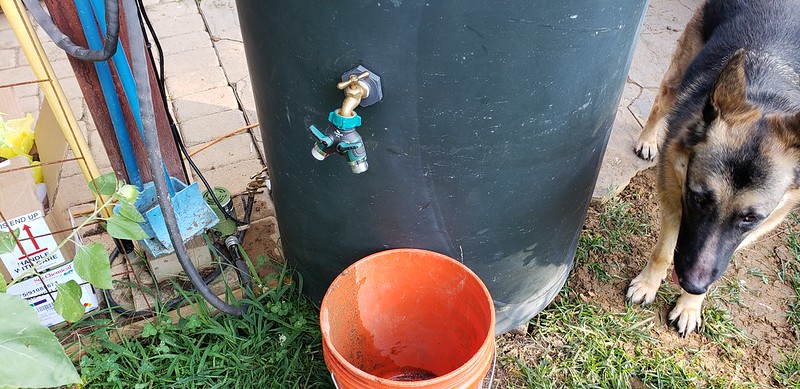

For another feed I installed a bulkhead fitting but will be replacing this hose bib for a 1/4 turn, this hose bib runs too slow. One valve feeds the pond and the other is for filling the bucket and adding compost teas or urea.

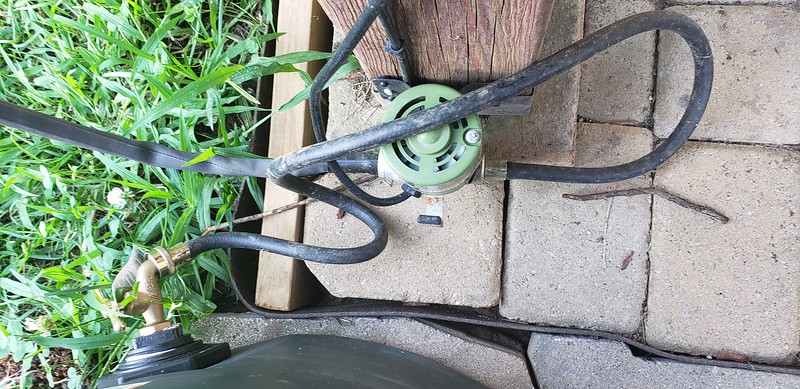

The hose bib on the bottom that feeds the transfer pump doesn't matter because its just to prime the pump.

Joined
Feb 4, 2018
Messages
60
Reaction score
57
Location
Missouri
Hardiness Zone
6a
Country
United States
Great pics, but what I really need to see is the hardware on the inside of the barrel........that's where I need the help. I don't want any leaks too.

Joined
Oct 19, 2017
Messages
87
Reaction score
88
Location
Philly
Hardiness Zone
7A
Country
United States

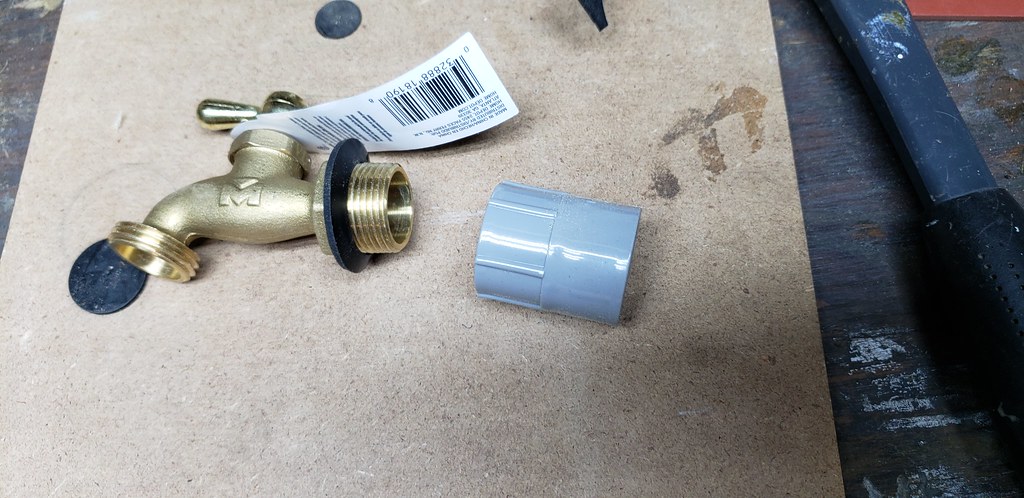

I already posted a pic on what you need, the rubber gasket goes on the hose bib when its on the inside of the barrel, then the adaptor gets screwed on.


But I really need more info to give you better advice, if its a 55 gallon drum that is thick plastic, you dont need any hardware on the inside, just drill a hole and screw the hose bib in, you can add teflon tape if it does happen to leak.

If you do want to put something on the inside you need to finagle a fitting on the inside or use a bulk head fitting.

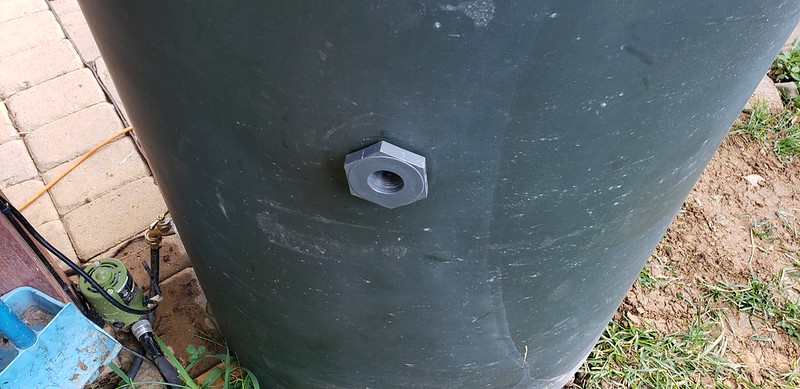

these drums all have the fittings screwed directly into the barrel.



Joined
Nov 15, 2015
Messages
290
Reaction score
193
Location
The Plains
Hardiness Zone
6/7
Country
United States
I leave all that plumbing stuff in china and put a siphon hose in the top. If you want to regulate flow put a valve on the discharge end of the hose.

Joined
Nov 15, 2015
Messages
290
Reaction score
193
Location
The Plains
Hardiness Zone
6/7
Country
United States
For some reason I got an e-mail because I posted once long long time ago to a thread "Seeking advice for my first spring garden" so just thought I'd drop in to see if anything had changed. I see it hasn't and navigation is just as difficult as ever so I won't be staying around. If anyone is interested in seeing an example of how simple forum navigation could, be drop in for a visit to diychatroom.com

Joined
Oct 8, 2017
Messages
6,849
Reaction score
5,029
Location
Birmingham, AL USA
Hardiness Zone
8a
Country
United States
For some reason I got an e-mail because I posted once long long time ago to a thread "Seeking advice for my first spring garden" so just thought I'd drop in to see if anything had changed. I see it hasn't and navigation is just as difficult as ever so I won't be staying around. If anyone is interested in seeing an example of how simple forum navigation could, be drop in for a visit to diychatroom.com
But no plant people. Good to hear from you though.
